Description
Details
| Items | Details |
|---|---|
| Contact form | 1NO+1NC |
| Action method | Reset, self-lock |
| Contact rating | Reset: 15A@380VAC; Self-lock: 5A@380VAC |
| Case material | Aluminium |
| Matched micro switch | LXW5-11G2 |
| Contact resistance | 50mΩ max (First time) |
| Insulation resistance | 100MΩ min at 500Vdc |
| Dielectric strength | 2000Vac, 50Hz for 1min |
| Machine life | 1×106 operations min |
| Electrical Life | 1×105 operations min |
| IP Rating | IP62 |
| Operating temperature | -25-70 °C |
| Operating humidity | 45 to 85% RH, no condensation |
| Alias name | Foot Switch F-1 |
Pictures, dimensions,table data and technical drawings of this product are made with reasonable care and liability is excluded for the accuracy and correctness of this data.

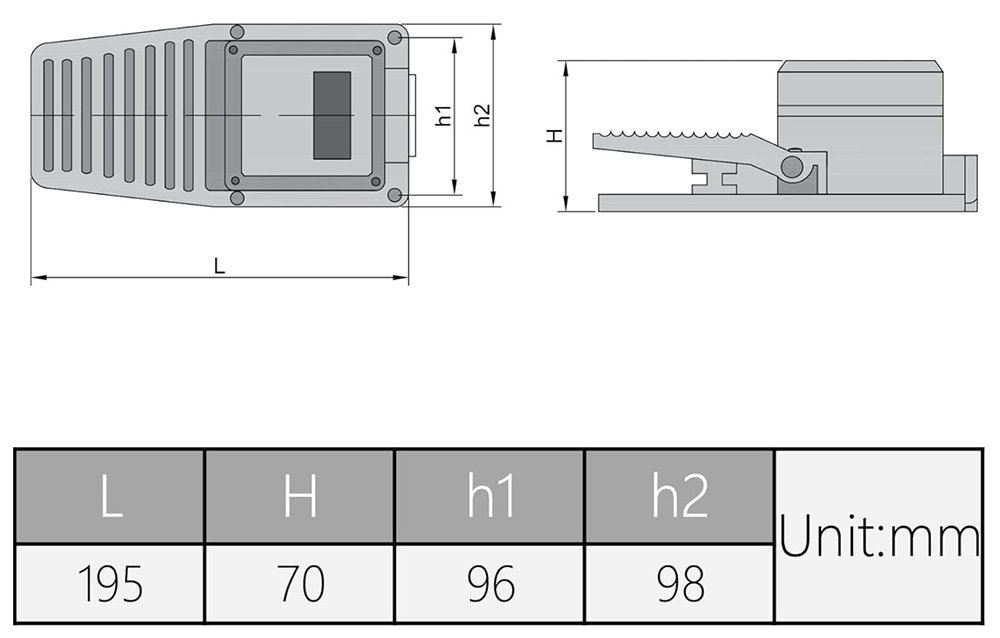

Dimensions
Example of Use
